Medium Voltage Cables

Medium-voltage cables are electrical cables used in industrial facilities, renewable energy projects, and power distribution networks. They offer enhanced reliability, reduced energy losses, and longevity transmitting energy over medium distances in demanding environments.

Consolidated Electronic Wire & Cable is a trusted provider of high-quality medium-voltage (MV) cables, rated from 1 kV to 35 kV, that support power transmission needs across various industries. Each cable ensures efficiency, durability, and compliance with industry standards. Discover the key benefits of MV power cables, how they’re constructed, and the specifications of our cable products.

Talk to a Cable Expert

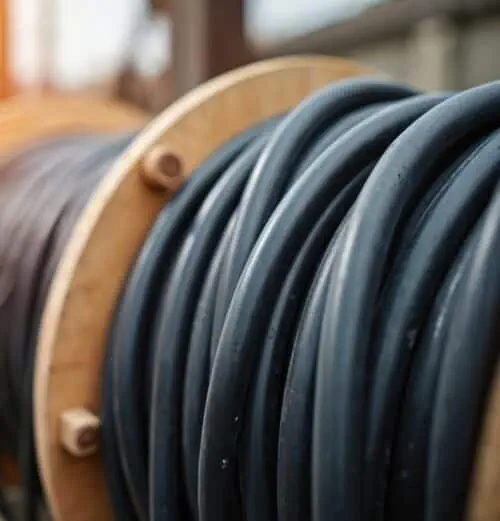

Key Benefits of Medium Voltage Power Cables

When properly specified and installed, medium-voltage power cables offer a variety of unique advantages:

Reliable power transmission. Stable energy flow over medium distances ensures consistent power transmission even in high-demand environments.
Reduced energy losses. The high-quality insulation of MV power cables minimizes energy lost as heat to boost efficiency.
Durability and longevity. Many MV cables are constructed with premium materials to withstand harsh conditions, including outdoor and industrial environments.
Compact. These cables provide more power within a smaller footprint, making them ideal for space-constrained applications.
Safety. Engineered with protective outer layers, medium-voltage power cables reduce the risk of electrical hazards, such as short circuits, faults, and arcing.
Versatility. They are suitable for various environments, including underground, aerial, and open tray applications.

Medium Voltage Cable Construction

A typical medium-voltage power cable consists of the following key components:

Current-carrying conductor. Typically made of aluminum or copper, the current-carrying conductor supports efficient power transmission, low resistance, and minimal voltage drop.
Insulation layer. Insulation provides electrical resistance and enhances safety by preventing unwanted current flow between conductors.
Protective sheath. MV cables also come with one or more sheaths that protect the wires from tension, mechanical damage, moisture, and other environmental stressors.
Shielding. Usually made of copper wire or tape, shielding reduces electromagnetic interference (EMI) and protects against electrical faults.
Jacketing materials. Made of neoprene, XLPE, or other durable material, the outer jacket prevents damage from UV exposure, abrasion, and harsh chemicals.

Consolidated Electronic Wire & Cable: Your Trusted Medium Voltage Cable Manufacturer

For over a century, Consolidated Electronic Wire & Cable has been a one-stop solutions provider for wire and cable needs. We offer a comprehensive selection of high-quality medium-voltage cables designed for long-lasting performance and durability in various applications. Our cost-effective design, production, and installation solutions are customizable and come with expert in-house engineering support.

We provide solutions backed by the following certifications and standards:

Quality and compliance. Our products meet stringent ICEA, UL, AEIC, and other standards, guaranteeing consistent safety and reliability.
ISO 9001:2015 certification. This certification verifies that we adhere to rigorous quality control measures throughout the manufacturing process, delivering high-quality products that meet your exact specifications.

Precision-Engineered MV Cables for Demanding Applications

Here’s an overview of our most popular precision-engineered MV cables.

Type MV-90 Medium Voltage Cable

MV-90 (part number MV90N-25-010-100-ATL) is a robust single-conductor cable for efficient, reliable medium-voltage power distribution. Key specifications include:

Voltage: 25 kV
Conductor: 1/0 AWG Aluminum, Class B stranded compressed
Insulation: TR-XLPE, 260 mils (100% IL)
Shield: Concentric Neutral (1/3), 14 AWG copper wires
Jacket: LLDPE, Black
Temperature Rating: 90 °C (Dry), 130 °C (Emergency), 250 °C (Short-Circuit), -35 °C (Cold)
Ampacity: 200 Amps (per NEC 315.60(C)(4))
Standards: UL 1072, ICEA S-94-649, AEIC CS-8
Applications: Power distribution, direct burial, cable tray systems

Type MV-105 Medium Voltage Cable

This MV-105 cable (part number MV105S-35-040-133-AEP) features EPR insulation and a copper tape shield for reliable performance in demanding power distribution and transmission applications. Key specifications include:

Voltage: 35 kV
Conductor: 4/0 AWG Aluminum, Class B stranded compact
Insulation: EPR, 420 mils (133% IL)
Shield: Copper Tape
Jacket: PVC, Black
Temperature Rating: 105 °C (Dry), 130 °C (Emergency), 250 °C (Short-Circuit), -35 °C (Cold)
Ampacity: 445 Amps (per NEC 315.60(C)(3))
Standards: UL 1072, ICEA S-93-639, AEIC CS-8

Type MV-105 Medium Voltage Cable

This is another MV-105 cable (part number SC281505) that has EPR insulation and a copper conductor. It is ideal for high-current transmission in challenging environments. Key specifications include:

Voltage: 15 kV
Conductor: 500 kcmil Copper, Class B stranded compact
Insulation: EPR, 220 mils (133% IL)
Shield: Copper Tape
Jacket: PVC, Black
Temperature Rating: 105 °C (Dry), 130 °C (Emergency), 250 °C (Short-Circuit), -40 °C (Cold)
Ampacity: 765 Amps (per NEC 315.60(C)(3))
Standards: UL 1072, ICEA S-93-639, AEIC CS-8

Common Applications of Medium Voltage Cables

MV cables are used in a wide range of applications, including:

Infrastructure, such as airports, tunnels, and transportation networks
Utilities, including power generation plants, substations, and electrical distribution networks
Renewable energy, such as wind and solar farms
Mining, oil, and gas
Data centers (at least 13.8 kV)

Partner with Consolidated for Reliable Medium Voltage Cables

Choose durable, reliable, and high-quality MV cables from a trusted industry leader to ensure the success of your project. Consolidated Electronic Wire & Cable is ready to assist with custom solutions and product recommendations. For high-performance medium-voltage cables tailored to your needs, contact us today or request a quote.
